Why is "case analysis propagates forward only" a fundamental limitation to keep in mind?
From PDVerse PrimeTime STA Interview Guide · pdVerse Mentor Guide
Ten-second Interview Answer
Setting a constant constrains only what is downstream of it - PrimeTime never infers the upstream values that would be logically necessary to produce it - so you must set the constant where the value can propagate forward to where it is needed.
Complete Technical Explanation

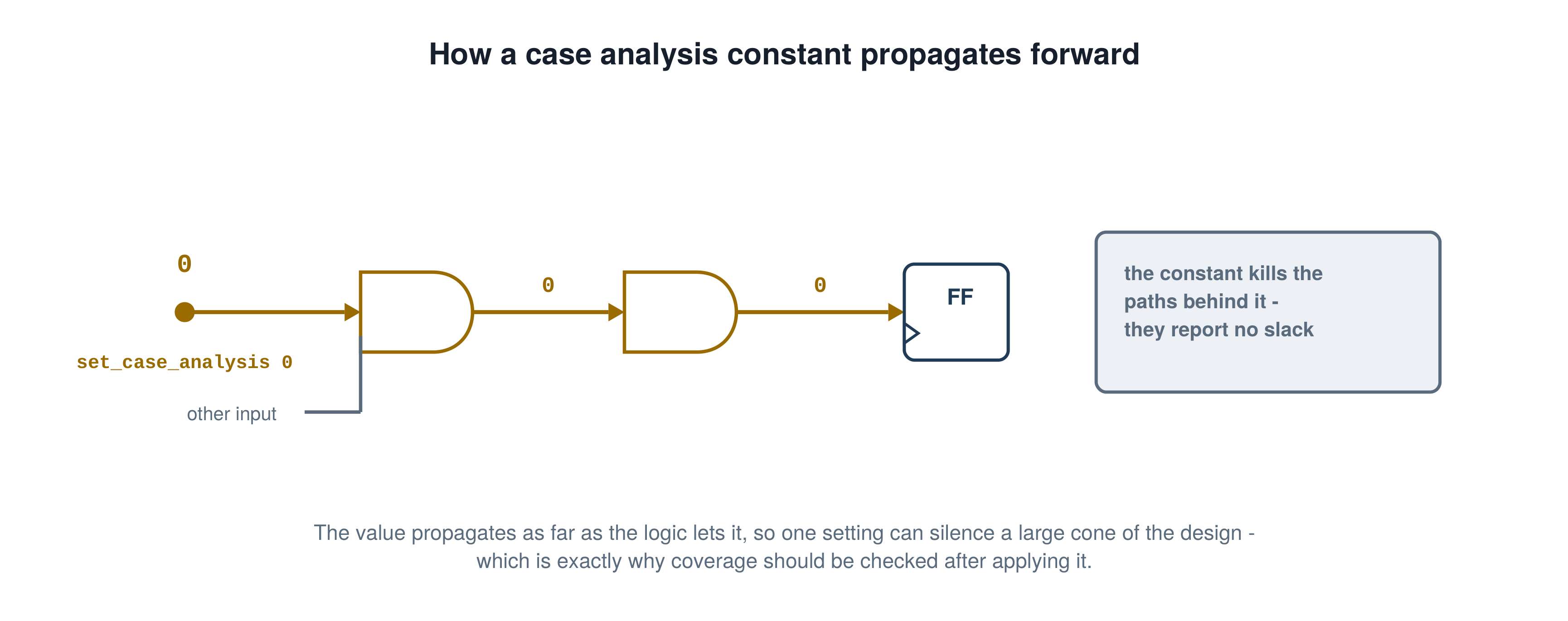

Case analysis is a forward-only operation, and that shapes where you are allowed to put constants. When you pin a value on a pin, PrimeTime constrains only what lies downstream of that pin; it will not back-solve the upstream logic to work out which input combinations would have produced the constant. So if the mode you want to force is determined by an internal signal, you have to place the case analysis at a point from which the value can actually propagate forward to the arcs and conditions you care about. Pinning a downstream pin does not reach backwards to constrain the logic that feeds it. This is precisely why mode-select constants belong on the controlling input - the RAM's read_write pin, for instance - and not on some internal node you merely wish were constant. The practical failure mode is quiet: you set a constant somewhere convenient, nothing errors, and the mode condition upstream is never evaluated against the value you intended, so the mode never resolves the way you assumed. Framed as a rule of thumb, always ask which pins the value needs to reach, then walk backwards through the logic yourself to find the real control point, and set the constant there. The tool will do the forward half; the backward reasoning is yours.
In Pd / Signoff
When bringing up constraints for a new block, an engineer traces each mode or configuration requirement back to a real control port and sets the constant there, then verifies with a fanin trace that the intended pins received the value. It is the difference between a mode setup that takes effect and one that silently leaves the design in its default all-enabled state.
Common Trap
Pinning an internal node deep in the logic because that is where you want the value, expecting the tool to back-solve the upstream inputs. It will not, so the mode-selection condition is never evaluated as false and the intended masking never happens.
Expect Next
How would you locate the correct forward-propagating control point when the mode is determined by a register you cannot reach from any port?
Topic And Primetime Commands
Case & Mode Analysis / Mode Analysis. read_write
